RELIEF SAFETY VALVES
Limiting Conditions :
Minimum blow off
Pressure : 5 P.S.I.
0.34 Bar gauge
Maximum blow off pressure: 250 P.S.I.
17.3 Bar gauge
MATERIAL OF
CONSTRUCTION
|
SR.NO |
PART NAME |
MAT. |
QTY. |
|
||||||||
|
01 |
BODY |
G.M. |
1 |
|||||||||
|
02 |
UNION |
G.M. |
1 |
|||||||||
|
03 |
DIPHRAGM |
G.M./PTFE |
1 |
|||||||||
|
04 |
BRASS |
G.M. |
1 |
|||||||||
|
05 |
RING |
G.M. |
1 |
|||||||||
|
06 |
SPRING |
SPRING STEEL |
1 |
|||||||||
|
07 |
WASHER |
BRASS |
2 |
|||||||||
|
08 |
CAP |
G.M. |
1 |
|||||||||
|
09 |
CHECK NUT/BOLT |
BRASS |
1 |
|||||||||
|
G.M. confirming to IS 318 Gr.2 & Brass confirming to IS 319.. |
||||||||||||
|

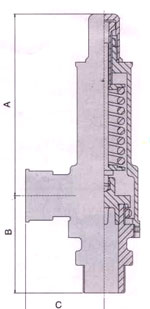

DIMENSIONS
Installation Advice : Outlet from the safety valve should be arranged to discharge to a safe place where it is visible. It should not cause damages or injury to persons. |
||||||||||||
MATERIAL OF CONSTRUCTION
|
SR.NO. |
PART NAME |
MAT. |
QTY. |
|
|
01 |
BODY |
G.M. |
1 |
|
|
02 |
STEM |
G.M. |
1 |
|
|
03 |
CAP |
G.M. |
1 |
|
|
04 |
DIAPHRAGM |
G.M. |
1 |
|
|
05 |
WASHER |
PTFE |
1 |
|
|
06 |
SPRING |
SPRING STEEL |
1 |
|
|
07 |
TENSION ADJ. |
G.M. |
1 |
DIMENSIONS
|
|
|
|
|
|
|
|
|
|
Continuous development
of our products, entitles us to change
specification details
without notice.
