Manufacturer, Supplier Of Valves, Brass Valves, Cast Iron Valves, Check Valves, Flanged Valves, Gate Valves, Globe Valves, Industrial Valves, Non Return Valves, Bronze Gate Valves, Bronze Globe Valves, Bronze Steam Valves, Cast Iron Steam Valves, Bronze Fusible Plugs, Boiler Casting, Cast Steel Blow Down Valves, Bronze Gauge Glass Assembly, Protector Glass Assembly, Bronze Relief Safety Valves, Travelling Grates, Dumping Grates, Pulsating Grates, Ball butterfly Valves, Ball Valves, Boiler Safety Valves, Boll Valve For Air Application, Butterfly Valve, Ball Valve For Oil Application, Ball Valve For Water Application, Flow Control Valves, IBR Control Valves, Brass Valve Fittings, Control Valves, Drain Valves, Forged Steel Check Valves, Water Check Valves, Relief Valves

Highlights


AN ISO 9001:2008 Certified Company.

IBR Approved Valves.

BARC Approved.

Mazgaon Dock Approved.

Our Uniqueness - We have a Foundry and well Equipped Machine shop under one roof.

Serving OEM's like Thermax, Forbes Marshall, Cummins Generator Technologies & many others since last 25 years.

Fastest Delivery of Products, Especially for Gauge Glass Valve & Fusible Plug.

Business Opportunities - To spread our network in India & the entire globe, we are looking for -
• Marketing Representatives
• Dealers

"We are known by our Quality,
We are remembered by our Service"
Download
-



Bronze Fusible Plug
:– One Piece - Waterside/Wet

SPECIFICATIONS
Bronze Fusible Plug
 MATERIAL
 BRONZE
 End connections
 Screwed BSPT
 Manufacturing standard
 As per IBR 1950 cl 331-334
 Testing standard
 As per IBR 1950 cl 290a
 Certification
 I B R approved
 Sizes
 ½ inch -1 inch

TYPES
Sr. no
Size (inches)

Pressure (psi)

Melting temperature (°C)
1
1
250
265
2
1
150
240
3
¾
250
265
4
¾
150
240
5
½
100
230


-

Bronze Fusible Plug :– One Piece - Fireside/Dry

SPECIFICATIONS
Bronze Fusible Plug
 MATERIAL
 BRONZE
 End connections
 Screwed BSPT
 Manufacturing standard
 As per IBR 1950 cl 331-334
 Testing standard
 As per IBR 1950 cl 290a
 Certification
 I B R approved
 Sizes
 ½ inch -1 inch

TYPES
Sr. no
Size (inches)

Pressure (psi)

Melting temperature (°C)
1
1
250
265
2
1
150
240
3
¾
250
265
4
¾
150
240
5
½
100
230

-

Bronze Fusible Plug :– Two Piece - Waterside/Wet

SPECIFICATIONS
Bronze Fusible Plug
 MATERIAL
 BRONZE
 End connections
 Screwed BSPT
 Manufacturing standard
 As per IBR 1950 cl 331-334
 Testing standard
 As per IBR 1950 cl 290a
 Certification
 I B R approved
 Sizes
 ¾ inch -1 inch

TYPES
Sr. no
Size (inches)

Pressure (psi)

Melting temperature (°C)
1
1
250
265
2
1
150
240
3
¾
250
265
4
¾
150
240

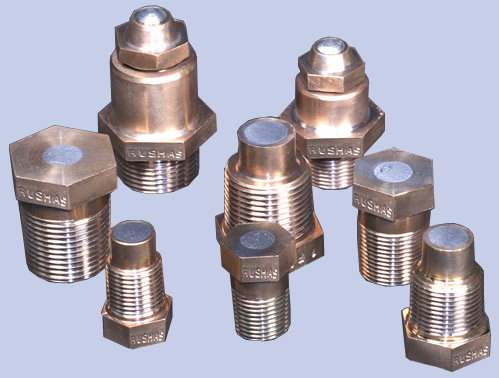

Fusible Plugs Group

-
