Bronze Gauge Glass Valves
[Boiler Mounting] Also Available With IBR III-C Certificate


We are Manufacturer, Exporter, Supplier of, Bronze Gauge Glass Valves, Boiler Mounting, Glass Tube Assembly, Protector Glass Assembly, from Ahmednagar, India

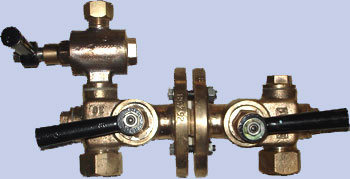

Bronze Gauges Glass Valves
Bronze Gauges Glass Valves
Features :
• Automatic shut off in water arm.
• Right hand or Left hand Assembly
SPECIFICATIONS
 MATERIAL
 BRONZE
 END CONNECTIONS
 FLANGED
 END FLANGES
 BS 10 TABLE-H
 WORKING PRESSURE
 17.5 Kg/sq.cm. & TEMP UP TO 2250C
 TESTING PRESSURE
 35 kg/sq.cm. HYDRAULIC
 SIZE
 20 mm

BILL OF MATERIAL
SR. NO.
 DESCRIPTION
 MATERIAL
QUANTITY
01
 WATER ARM BODY
 BRONZE (IBR 282 A GRADE B)
01
02
 STEAM ARM BODY
 BRONZE (IBR 282 A GRADE B)
01
03
 DRAIN ARM BODY
 BRONZE (IBR 282 A GRADE B)
01
04
 SEAT
 SS 304
01
05
 SPINDLE
 SS 410
01
06
 DIAPHRAGM
 SS 304
01
07
 BUSH
 C.F.T.
01

DIMENSION
SIZE
A
B
ø C
mm
mm
mm
mm
20
135
13
115

-

Bronze Gauges Glass Valves
Bronze Gauges Glass Valves
Bronze Gauges Glass Valves

-

Gauge Glass Valve with Protector Glass Assembly
 • Glass Tube and Protector Glass Assembly can be supplied at extra cost

-
